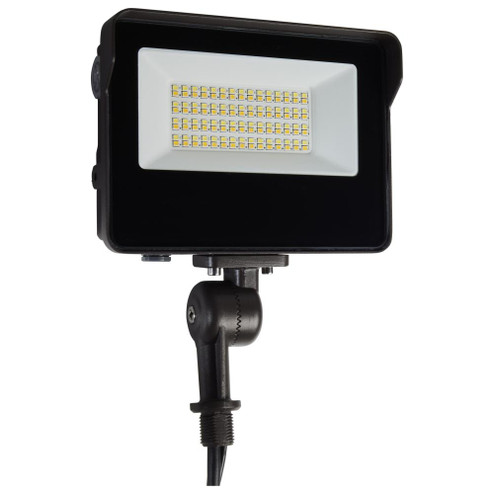

LED Tempered Glass Flood Light with Bypassable Photocell; CCT Selectable 3K/4K/5K; Wattage Adjustable 15W/25W/35W; ColorQuick and PowerQuick Technology; Bronze Finish {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- AVAILABLE FOR PURCHASE:
- NO
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB KELVIN:
- WARM TO COOL WHITE
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.42.6000
- LENGTH:
- 7.24
- LUMENS:
- 1800L-4900L
- MAX HEIGHT:
- 9.94''
- SHIP CARTON HEIGHT:
- 11.14''
- SHIP CARTON LENGTH:
- 7.7
- SHIP CARTON WIDTH:
- 4.92''
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- AMPS:
- 0.125-0.043/0.208-0.072/0.292-0.101A
- BEAM SPREAD:
- 150X135
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 0.2442
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- CRI:
- 80
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- HAS DRIVER:
- YES
- HID EQUIV:
- 100W-150W
- IMPACT RATING (IK):
- IK07
- INDOOR OUTDOOR:
- OUTDOOR
- INSTALLATION NOTES:
- HEIGHT WILL CHANGE WITH DIFFERENT MOUNTING OPTIONS.''
- IOT ENABLED:
- NO
- IP RATING:
- IP66
- LENS MATERIAL:
- TEMPERED GLASS
- MATERIAL:
- DIE-CAST ALUMINUM
- OPERATING TEMPRATURE:
- -30C (-22F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- HAS PHOTOCELL
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CULUS
- SDS CLASS:
- LED_FIXTURE
- SDS SHEET LINK:
- #REF!
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 1.14
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 2.44
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 9.91
- WIDTH RANGE:
- 0-15''
- FCC COMPLIANT:
- YES
- OPERATING FREQUENCY:
- 50/60HZ
- SPECIFICATION NOTES:
- NEMA DISTRIBUTION: 7V X 7H
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- ARCHITECTURAL FLOOD AND SPOT LUMINAIRES
- FEATURE 1:
- 3000K/4000K/5000K CCT SELECTABLE
- FEATURE 2:
- 15W/25W/35W WATTAGE SELECTABLE
- FEATURE 3:
- INTEGRATED BYPASSABLE PHOTOCELL AND 4KV SURGE PROTECTION
- FEATURE 4:
- TEMPERED GLASS
- FEATURE 5:
- 0-10V DIMMABLE
- FEATURE 6:
- IP66
- FEATURE 7:
- 50000 HOURS
- FEATURE 8:
- NEMA DISTRIBUTION: 7V X 7H
- FEATURE 9:
- SUGGESTED APPLICATIONS: COMMERCIAL/INDUSTRIAL GENERAL SITE LIGHTING LANDSCAPE SIGN ILLUMINATION PATHWAY/WALKWAY
- LONG DESCRIPTION:
- SATCO
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- IMAGE INFO:
- ''''
- INCANDESCENT EQUIVALENT:
- 100W-150W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 11.14''
- EACH LENGTH:
- 7.7
- EACH WIDTH:
- 4.92''
- HEIGHT MAX:
- 9.94''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- BEAM ANGLE:
- 150X135
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.2442
- EACH QUANTITY:
- 1
- EFFICACY:
- 120.00/134.00/140.00 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- LED WATT/CCT SELECTABLE FLOOD
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 20%
