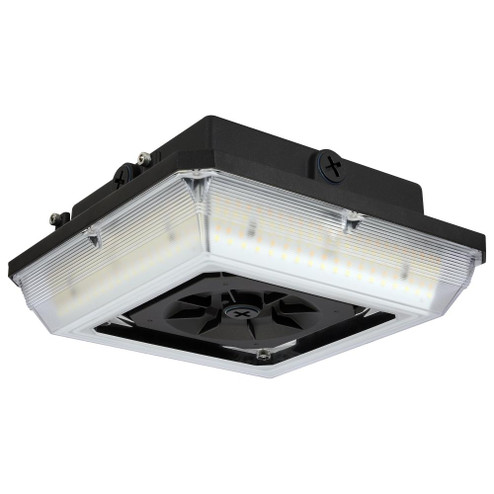

Square LED; Wide Beam Angle Canopy Light; 3K/4K/5K CCT Selectable; 60W/75W/90W Wattage Selectable; Bronze Finish {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- AVAILABLE FOR PURCHASE:
- NO
- ADDITIONAL INFO:
- RECOMMENDED MOUNTING HEIGHT: 15 TO 20 FEET''
- BULB HOURS:
- 50000
- BULB KELVIN:
- WARM WHITE TO NATURAL LIGHT
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 9.57
- LUMENS:
- 7920L-12557L
- SHIP CARTON HEIGHT:
- 11.02''
- SHIP CARTON LENGTH:
- 11.02
- SHIP CARTON WIDTH:
- 5.12''
- WARRANTY:
- 5-YEARS
- AMPS:
- 0.500-0.217/0.625-0.271/0.750-0.325A
- B_U_G_RATING:
- B3-U4-G5
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 0.3598
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- CONNECTION:
- HARDWIRE
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- PARKING GARAGE LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- WIDE BEAM ANGLE FOR BROAD LIGHT COVERAGE
- FEATURE 10:
- L:9.57 INCHES W:9.57 INCHES H:3.62 INCHES
- FEATURE 2:
- 3 CCT SELECTABLE
- FEATURE 3:
- 3 WATTAGE SELECTABLE
- FEATURE 4:
- INTEGRATED SENSOR PORT
- FEATURE 5:
- IK10 VANDAL RESISTANT LENS
- FEATURE 6:
- EM BATTERY BACKUP CAPABLE
- FEATURE 7:
- 0-10V DIMMABLE
- FEATURE 8:
- 2.5KV BUILT-IN SURGE PROTECTION
- IMPACT RATING (IK):
- IK10
- INDOOR OUTDOOR:
- OUTDOOR
- INSTALLATION NOTES:
- HINGED DOOR FOR EASE OF INSTALLATION
- IOT ENABLED:
- NO
- IP RATING:
- IP65
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO NUVO'S 65-637 LED WIDE BEAM ANGLE CANOPY OFFERS CUTTING-EDGE FIELD-SELECTABLE CAPABILITIES. TAILOR YOUR LIGHTING EXPERIENCE BY SELECTING FROM THREE COLOR TEMPERATURES (3K 4K 5K) AND THREE WATTAGE OPTIONS (60W 75W 90W.) THE CANOP...
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMPRATURE:
- -40C (-40F) TO +50C (+122F)
- PACK TYPE:
- BROWN BOX
- PHOTOCELL:
- OPTIONAL ADD-ON
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CULUS - CERTIFIED
- SDS CLASS:
- LED_FIXTURE
- SPECIFICATION NOTES:
- MULTIPLE HALF-INCH KNOCKOUTS THREE QUARTER INCH BACK KNOCKOUT FOR PENDANT APPLICATIONS
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WATTAGE SELECTABLE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.62
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 9.57
- WIDTH RANGE:
- 0-15''
- IMAGE INFO:
- ''65-637.JPG:DEFAULT''
- INCANDESCENT EQUIVALENT:
- 300W
- REPLACEABLE LIGHT SOURCE:
- NO
- STYLE:
- UTILITY
- BEAM SPREAD:
- 190
- WEIGHT LB.:
- 5.06
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB SHAPE:
- INTEGRATED LED
- REPLACES:
- #REF!
- SDS SHEET LINK:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE TO NATURAL LIGHT
- EACH HEIGHT:
- 11.02''
- EACH LENGTH:
- 11.02
- EACH WIDTH:
- 5.12''
- TARIFF CODE:
- 9405.11.6020
- BAA COMPLIANT:
- NO
- BEAM ANGLE:
- 190
- EACH CUBE:
- 0.3598
- EACH QUANTITY:
- 1
- EFFICACY:
- 132.00/136.53/139.52 LPW
- INTEGRATED FEATURES:
- INTEGRATED DC SENSOR PORT
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- EXPERIENCE THE VERSATILITY OF SATCO NUVO'S LED WIDE BEAM ANGLE CANOPY EQUIPPED WITH CUTTING-EDGE FIELD-SELECTABLE CAPABILITIES. CHOOSE FROM THREE COLOR TEMPERATURES AND THREE WATTAGE OPTIONS. ADDITIONALLY THE INTEGRATED SENSOR PORT MAKES...
- SHORT DESCRIPTION:
- LED WIDE BEAM ANGLE CANOPY
- TITLE 20 COMPLIANT:
- EXEMPT
- TOTAL HARMONIC DISTORTION:
- <20%
- ANSI BASE:
- INTEGRATED
- ORDER IN MULTIPLES OF:
- 1
- TITLE 24 COMPLIANT:
- NO
- FINISH:
- FLUSH MOUNTS
- STANDARD STYLE:
- OTHER FLUSH MOUNTS
- CATEGORY:
- SURFACE MOUNT
- SUB CATEGORY:
- CANOPY FIXTURE
- COUNTRY OF ORIGIN:
- VIETNAM
- FEATURE 9:
- BRONZE FINISH
- 4/29/2025 14:
- 18
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- FIXTURE SHAPE:
- SQUARE
