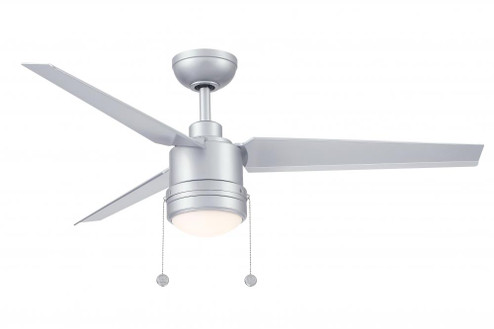

The Fanimation PC/DC Ceiling Fan is one of the newest inspirations, featuring Fanimation's first Pull Chain Ceiling Fan with a DC motor. The PC/DC is an indoor/outdoor 52 inch Ceiling Fan that offers Black, Matte White and Silver wet rated finishes with blades and LED light kit included. The PC/DC Fanimation Ceiling Fan has a look of sophistication and smooth structure, that can be displayed inside or outside the home. *Wet rated for Indoor/Outdoor use *Reverse airflow for multi-season use *Pull Chain motor control {ADDITIONAL FINISH INFORMATION: ''Silver''}
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 286
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- OPTION:
- WET
- GLASS:
- OPAL FROSTED
- FAMILY:
- PC/DC
- ADDITIONAL INFO:
- 16 SPEED DC MOTOR WITH REVERSE SWITCH FAN AND LIGHT CONTROL
- ADDITIONAL INFO1:
- CHINA
- ADDITIONAL INFO2:
- ENERGY STAR MOST EFFICIENT 2022
- ADDITIONAL INFO3:
- LIMITED LIFETIME MOTOR WARRANTY
- ADDITIONAL INFO4:
- PULL CHAIN CONTROL
- ADDITIONAL INFO5:
- SET OF (3) 52 INCH WET RATED BLADES AND 18 WATT LED LIGHT KIT INCLUDED
- AIR FLOW CFM:
- 5874
- AIR FLOW EFFICIENCY:
- 190
- AMPERAGE:
- 0.47
- BLADE FINISH:
- SILVER
- BLADE SPAN:
- 52
- BULB TYPE:
- 18 WATT LED MODULE
- CANOPY:
- 6.3 DIA X 2.56 H
- DIAMETER:
- 7.52
- DOWN ROD INCLUDED:
- 6
- ELECTRICITY USED:
- 31
- HARMONIZED CODES:
- 8414.51.3000
- KELVIN:
- 3000
- LENGTH:
- 52
- LIGHT KIT INCLUDED:
- YES
- LUMENS / LIGHT OUTPUT:
- 1500
- MATERIAL:
- COMPOSITE
- MOTOR FAN SPEED:
- 16
- MOTOR RPM:
- 168
- MOTOR SIZE:
- 100 X 30
- MOTOR TYPE:
- DC
- SHIP CARTON HEIGHT:
- 14.57''
- SHIP CARTON LENGTH:
- 27.95
- SHIP CARTON WIDTH:
- 16.14''
- SHIP WEIGHT:
- 21.83
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 15.65
- BLADE FINISH METHOD:
- PAINTED
- BLADE PITCH DEGREES:
- 13
- BLADE REVERSIBLE:
- NO
- CAP INCLUDED:
- NO
- CARTON CUBIC FEET:
- 3.8
- CASE HEIGHT:
- 14.57''
- CASE LENGTH:
- 27.95
- CASE QUANTITY:
- 1
- CASE WEIGHT POUNDS:
- 21.83
- CASE WIDTH:
- 16.14''
- CEILING TO BLADE EDGE:
- 10.24
- CEILING TO BOTTOM:
- 16.91
- CRI:
- 90
- INCLUDED CONTROL TYPE:
- PULL CHAIN
- LEADWIRE:
- 54
- MAXIMUM SLOPE DEGREE:
- 27
- MOTOR FINISH METHOD:
- PAINTED
- MOTOR REVERSIBLE:
- YES
- NUMBER OF BLADES:
- 3
- REVERSE SWITCH LOCATION:
- SWITCH HOUSING
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- VOLTAGE CYCLES:
- 60 HZ
- WET RATED:
- YES
- CEILING:
- YES
- FINISH:
- SILVER
- REQUIRED (NOT INCLUDED):
- 1 18W LED MODULE BULBS
- NUMBER OF BULBS:
- 1
- HEIGHT:
- 16.91
- HEIGHT RANGE:
- 15-20''
- WIDTH:
- 52.00
- WIDTH RANGE:
- 50-55''
- STANDARD STYLE:
- TRADITIONAL
- More Info {1}:
- 3 SPEED DC MOTOR WITH REVERSE SWITCH FAN AND LIGHT CONTROL
- More Info {2}:
- ENERGY STAR MOST EFFICIENT 2022
- More Info {3}:
- LIMITED LIFETIME MOTOR WARRANTY
- More Info {4}:
- PULL CHAIN CONTROL
- More Info {5}:
- SET OF (3) 52 INCH WET RATED BLADES AND 18 WATT LED LIGHT KIT INCLUDED
- AIRFLOW EFFICIENCY LOW:
- 832
- AIRFLOW EFFICIENCY MEDIUM:
- 419
- AVG AIRFLOW EFFICIENCY:
- 188
- AVG CFM ENERGY:
- 3649
- AVG ENERGY USE WATTS:
- 19
- AVG ESTIMATED YEARLY ENERGY COST:
- 5
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 9
- BLADE MATERIAL:
- COMPOSITE
- BLADE SWEEP:
- 52
- BULB BASE:
- CONNECTOR PIN
- BULB CRI:
- 90
- BULB WATTAGE:
- 18
- CANOPY DIAMETER:
- 6.3 DIA
- CANOPY HEIGHT:
- 2.56 H''
- CEC UPLOADED:
- YES
- CFM LOW:
- 1764
- CFM MEDIUM:
- 3723
- COMPATIBLE ACCESSORIES:
- CCK8002SLW DR1-CPSL DR1SS-12SLW DR1SS-18SLW DR1SS-24SLW DR1SS-36SLW DR1SS-48SLW DR1SS-60SLW DR1SS-72SLW SCB1-52
- CURRENT DRAW HIGH:
- 0.47
- CURRENT DRAW LOW:
- 0.07
- CURRENT DRAW MEDIUM:
- 0.17
- DOE CLASSIFICATION:
- LSSD
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 6
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR:
- NO
- HOUSING DIAMETER:
- 7.52
- LIGHT KIT ENERGY STAR:
- NO
- MAX CEILING SLOPE:
- 27
- MAX WATT:
- 31
- NUMBER OF SPEEDS:
- 3
- REGULATED PRODUCT:
- YES
- RPM HIGH (VI):
- 168
- RPM LOW (II):
- 53
- RPM MEDIUM (IV):
- 111
- WATTS LOW:
- 2
- WATTS MEDIUM:
- 9
- WATTS PER BULB:
- 18
