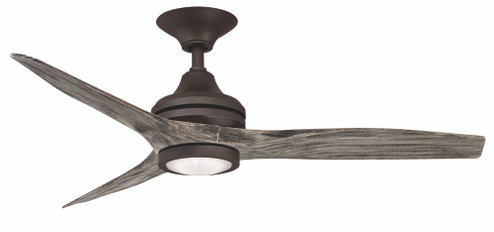

The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''Matte Greige''}
- OPTION:
- DAMP
- FAMILY:
- Spitfire
- ADDITIONAL INFO:
- 3 SPEED AC MOTOR WITH REVERSE SWITCH FAN SPEED LIGHT CONTROLS AND SLEEP TIMER FEATURES
- ADDITIONAL INFO1:
- 5227 CFM ON HIGH
- ADDITIONAL INFO2:
- LIMITED LIFETIME WARRANTY
- ADDITIONAL INFO3:
- TR500 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- AIR FLOW CFM:
- 6641
- AIR FLOW EFFICIENCY:
- 108
- AMPERAGE:
- 0.52
- BLADE PITCH:
- 21
- BLADES INCLUDED:
- 3
- CANOPY:
- 7.09 DIA X 2.2 H
- DIAMETER:
- 8.07
- DOWN ROD INCLUDED:
- 4.5
- ELECTRICITY USED:
- 61
- HARMONIZED CODES:
- 8414.51.3000
- LENGTH:
- 48 60
- MAX LENGTH:
- 60
- MAX WIDTH:
- 60''
- MOTOR FAN SPEED:
- 3
- MOTOR RPM:
- 130
- MOTOR SIZE:
- 188 X 25
- MOTOR TYPE:
- AC
- REMOTE CONTROL INCLUDED:
- TR500
- SHIP CARTON HEIGHT:
- 10.91''
- SHIP CARTON LENGTH:
- 14.49
- SHIP CARTON WIDTH:
- 10.47''
- SHIP WEIGHT:
- 17.85
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 16.34
- AIRFLOW EFFICIENCY LOW:
- 175
- AIRFLOW EFFICIENCY MEDIUM:
- 128
- AVG AIRFLOW EFFICIENCY:
- 92
- AVG CFM ENERGY:
- 3776
- AVG ENERGY USE (WATTS):
- 41
- AVG ESTIMATED YEARLY ENERGY COST:
- 12
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 17
- CARTON CUBIC FEET:
- 0.96
- CARTONS PER UNIT:
- 1
- CASE HEIGHT:
- 10.91''
- CASE LENGTH:
- 14.49
- CASE WEIGHT POUNDS:
- 17.85
- CASE WIDTH:
- 10.47''
- CEILING TO BOTTOM (WITH LK):
- 13.71
- CFM LOW:
- 2433
- CFM MEDIUM:
- 4614
- COMPATIBLE ACCESSORIES:
- DR1-12GR DR1-18GR DR1-24GR DR1-36GR DR1-48GR DR1-60GR DR1-72GR DR1-CPGR SCK1-52GR CCK6721GR
- COMPATIBLE BLADES:
- B6720BL B6720BN B6720DF B6720DWA B6720N B6720WE B6720WK B6720WW B6720-48BL B6720-48BN B6720-48DF B6720-48DWA B6720-48MW B6720-48N B6720-48WE B6720-48WK B6720-48WW
- COMPATIBLE CONTROLS:
- BTCR9 BTR9 CRL4WH WFR50
- COMPATIBLE LIGHT KITS:
- LK6721BGR
- COMPATIBLE WALL CONTROLS:
- CWRL4LA CWRL4WH WC1WH WC2WH WR500WH WR501WH
- CONTROL TYPE:
- Handheld
- CURRENT DRAW LOW:
- 0.25
- CURRENT DRAW MEDIUM:
- 0.4
- DAMP RATED:
- Yes
- DOE CLASSIFICATION:
- LSSD
- INCLUDED CONTROL:
- TR500
- LEADWIRE:
- 80
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- RPM LOW (II):
- 54
- RPM MEDIUM (IV):
- 98
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- VOLTAGE CYCLES:
- 60 HZ
- WATTS LOW:
- 14
- WATTS MEDIUM:
- 36
- HEIGHT:
- 12.00
- WIDTH:
- 48.00
- WIDTH RANGE:
- 45-50''
- CEILING:
- YES
- WALL:
- YES
- FINISH:
- GRAY
- LOCAL_ON_DISPLAY:
- 1
- ON DISPLAY IN SHOWROOM:
- Yes
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- CANOPY1:
- Diameter- 6.34 Height- 2.83''
- CANOPY2:
- Diameter- 7.09 Height- 2.2''
- LIGHT KIT INCLUDED:
- No
- BROCHURE:
- Manufacturer Brochure
- CAP INCLUDED:
- No
- CEC UPLOADED:
- Yes
- CEILING TO BLADE EDGE:
- 12
- CEILING TO BLADE EDGE1:
- 13.05
- CEILING TO BOTTOM (NO LK):
- 12
- CEILING TO BOTTOM (NO LK)1:
- 13.69
- CEILING TO BOTTOM (NO LK)2:
- 14.55
- CEILING TO BOTTOM (NO LK)3:
- 18.04
- DOE-FTC UPLOADED:
- Yes
- LEAD WIRE:
- 54
- REVERSE SWITCH LOCATION:
- Motor Housing
- AVAILABLE FOR PURCHASE:
- YES
- ADDITIONAL INFO4:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- ADDITIONAL INFO5:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR 4:
- NO
- MAXIMUM SLOPE DEGREE:
- 19
- MOTOR FINISH METHOD TYPE:
- PAINTED
- NUMBER OF BLADES:
- 3
- PRODUCT CERTIFICATION LABEL:
- UL/CUL
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- More Info {1}:
- 3 SPEED AC MOTOR WITH REVERSE SWITCH FAN SPEED LIGHT CONTROLS AND SLEEP TIMER FEATURES
- More Info {2}:
- 5227 CFM ON HIGH
- More Info {3}:
- LIMITED LIFETIME WARRANTY
- More Info {4}:
- TR500 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- More Info {5}:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- AVG ENERGY USE WATTS:
- 41
- CANOPY DIAMETER:
- 7.09 DIA
- CANOPY HEIGHT:
- 2.2 H''
- CASE QUANTITY:
- 1
- CEILING TO BOTTOM1:
- 13.71
- CURRENT DRAW HIGH:
- 0.52
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 4.5
- HOUSING DIAMETER:
- 8.07
- INCLUDED CONTROL TYPE:
- HANDHELD
- MAX CEILING SLOPE:
- 19
- MAX WATT:
- 61
- NUMBER OF SPEEDS:
- 3
- RPM HIGH (VI):
- 130
