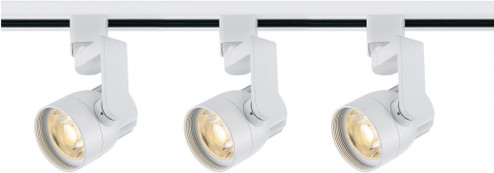

3 Light; Track Lighting Kit; 12 Watt LED per Head; 3000K; 4 foot Track; 36 degree; Round shape with angle arm; White finish; H-Style {ADDITIONAL FINISH INFORMATION: ''White''}
- STYLE:
- Contemporary
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 30000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- EXTENDS:
- 5.75
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 3.38
- LUMENS:
- 3060L
- SHIP CARTON HEIGHT:
- 48.31''
- SHIP CARTON LENGTH:
- 5
- SHIP CARTON WIDTH:
- 4.25''
- SHIP WEIGHT:
- 5.5
- VOLTAGE:
- 120V
- WARRANTY:
- 3-YEARS
- BEAM ANGLE:
- 36
- CARTON CUBIC FEET:
- 0.5941
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2025 JA8 LISTED
- COLOR TEMPRATURE:
- Warm White
- CRI:
- 90+
- LOCATION RATING:
- Dry
- PACK TYPE:
- Box
- HEIGHT:
- 2.75
- WIDTH:
- 2.75
- FINISH:
- TRACK LTG.
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- BULBS:
- 12W WATT INTEGRATED LED:12W WATT INTEGRATED LED:3
- STANDARD STYLE:
- CONTEMPORARY
- DIMMABLE:
- Yes-Dimmable
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- DIMMABLE FUNCTION:
- REVERSE PHASE OR PHASE SELECTABLE 120V ONLY
- REQUIRED (NOT INCLUDED):
- 3 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 370
- ANSI BASE:
- INTEGRATED
- DIMMING TYPE:
- PHASE CUT 120V ONLY
- FCC COMPLIANT:
- YES
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- ROUND
- INCLUDES:
- (1) TR120 4 FOOT TRACK (1) TP154 FLOATING POWER FEED (3) TH423 TRACK HEADS ALL REQUIRED MOUNTING HARDWARE
- INDOOR OUTDOOR:
- INDOOR
- MATERIAL:
- STAINLESS STEEL
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 3
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 3000K
- WEIGHT LB.:
- 5.23
- LAMPS:
- YES
- AMPS:
- 0.300A
- SDS SHEET LINK:
- #REF!
- SDS CLASS:
- LED_FIXTURE
- BULB KELVIN:
- WARM WHITE
- BEAM SPREAD:
- 36
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 225W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 30000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 48.31''
- EACH LENGTH:
- 5
- EACH WIDTH:
- 4.25''
- TARIFF CODE:
- 9405.11.6020
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.5941
- EACH QUANTITY:
- 1
- EFFICACY:
- 85.00 LPW
- JA8 COMPLIANT:
- YES
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- 0.94
- R9 VALUE:
- 60
- SHORT DESCRIPTION:
- TRACK KIT 12W LED ANGLE ARM
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- YES
- ORDER IN MULTIPLES OF:
- 1
- IMAGE INFO:
- 4/29/2025 4:24
- CATEGORY:
- TRACK LIGHTING
- SUB CATEGORY:
- TRACK KIT
- ADDITIONAL INFO:
- MOST TRACK ACCESSORIES AND PARTS ARE AVAILABLE AND INTERCHANGEABLE BETWEEN FINISHES
- COUNTRY OF ORIGIN:
- CHINA
- 4/30/2025 14:
- 19
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- IOT ENABLED:
- NO
- BAA COMPLIANT:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- CONNECTOR:
- H-STYLE
- FIELD SELECTABLE:
- NO
- TRACK HEAD STYLE:
- ANGLE ARM
- VOLTAGE TEXT:
- AC ONLY
