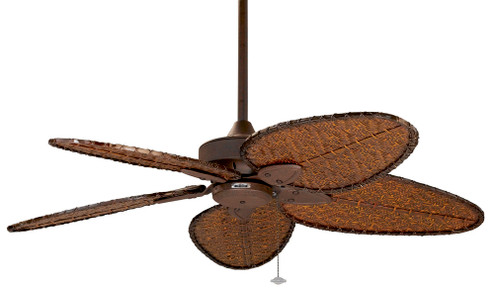

Windpointe - 52 inch-RS with A Narrow Oval Blades (90|FP7500RS)

Shop This Collection
$600.00
Free Shipping on orders over $99. Usually ships in 1-3 days.
Write a Review
Finish: RUST
Width: 52.00in
Height: 14.50in

Estimated Quantity at Manufacturer 175

X
Beautifully crafted with style and versatility in mind, The Windpointe by Fanimation will provide the right look for any room. A myriad of fashionable blade options can be paired with The Windpointe?s three, four and five blade motors. For those in the market for a more traditional ceiling fan, The Windpointe can be paired with a variety of carved wood blades in finishes ranging from cairo purple to sambel sand. For a more organic look, The Windpointe can be paired with an array of natural palm leaf blades or woven bamboo blades. The Windpointe 3 blade series has earned the Energy Star for energy efficiency and is rated for both dry and damp locations. All Windpointe ceiling fans can accommodate a ceiling slope up to 30 degrees and operate on three forward and reverse speeds. The Windpointe series includes a 6 inch downrod and can also be purchased with an optional close-to-ceiling kit. *The Antique Brass finish is Dry Rated for indoor use, while the oil-Rubbed Bronze and Rust finish are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use Beautifully crafted with style and versatility in mind, The Windpointe by Fanimation will provide the right look for any room. A myriad of fashionable blade options can be paired with The Windpointe?s three, four and five blade motors. For those in the market for a more traditional ceiling fan, The Windpointe can be paired with a variety of carved wood blades in finishes ranging from cairo purple to sambel sand. For a more organic look, The Windpointe can be paired with an array of natural palm leaf blades or woven bamboo blades. The Windpointe 3 blade series has earned the Energy Star for energy efficiency and is rated for both dry and damp locations. All Windpointe ceiling fans can accommodate a ceiling slope up to 30 degrees and operate on three forward and reverse speeds. The Windpointe series includes a 6 inch downrod and can also be purchased with an optional close-to-ceiling kit. *The Antique Brass finish is Dry Rated for indoor use, while the oil-Rubbed Bronze and Rust finish are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''RUST''}
OPTION:
DAMP
FAMILY:
WINDPOINTE
ADDITIONAL INFO:
3 speed AC motor with reverse switch
AIR FLOW CFM:
3177
AIR FLOW EFFICIENCY:
66
AMPERAGE:
0.4
BLADE FINISH:
Narrow Oval Antique Bamboo
BLADE PITCH:
18
BLADE SPAN:
52
BLADES INCLUDED:
5
CANOPY:
5.75 DIA X 2.57 H
DIAMETER:
9.06
DOWN ROD INCLUDED:
6
ELECTRICITY USED:
48
HARMONIZED CODES:
8414.51.3000
LENGTH:
52
MATERIAL:
Woven Bamboo
MOTOR FAN SPEED:
3
MOTOR RPM:
114
MOTOR SIZE:
188 X 25
MOTOR TYPE:
AC
PULL CHAIN INCLUDED:
Yes
SHIP CARTON HEIGHT:
11.93''
SHIP CARTON LENGTH:
24.13
SHIP CARTON WIDTH:
13.15''
SHIP WEIGHT:
32.65
SOLD BY:
EACH
VOLTAGE:
120 V
WARRANTY:
LIMITED LIFETIME
WEIGHT:
24.9
WIRE INCLUDED:
80''
AIRFLOW EFFICIENCY LOW:
113
AIRFLOW EFFICIENCY MEDIUM:
62
AVG AIRFLOW EFFICIENCY:
74
AVG CFM ENERGY:
2374
AVG ENERGY USE (WATTS):
32
AVG ESTIMATED YEARLY ENERGY COST:
9
AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
13
BLADE FINISH METHOD:
Painted
BLADE MATERIAL:
Woven Bamboo
BLADE SWEEP:
52
CARTON CUBIC FEET:
2.19
CARTONS PER UNIT:
1
CASE HEIGHT:
11.93''
CASE LENGTH:
24.13
CASE WEIGHT POUNDS:
32.65
CASE WIDTH:
13.15''
CFM LOW:
1566
CFM MEDIUM:
1867
COMPATIBLE ACCESSORIES:
CCK8002RS DR1-12RS DR1-18RS DR1-24RS DR1-36RS DR1-48RS DR1-60RS DR1-72RS DR1-CPRS SCB1-52
COMPATIBLE BLADES:
B5131DC B5131RC B5132DC B5132RC B5133CYWA B5133MOMP B5133TKMH B5260WA B5270WA B5280WA B5300WA B5310WA B5330WA B5340WA B5350WA B6030CY B6030MH B6030MP B6030TK B6060WA B6070WA B6080WA B6110WA B6130WA B6131DC B6131RC
COMPATIBLE CONTROLS:
BTCR9 BTR9 CR500 CRL4WH WFR50
COMPATIBLE LIGHT KITS:
F401OB F404OB F423OB LK112A LK113WH LK114AOB LK114WOB LK122A LK124AOB LK124WOB LK250 LK500OB LKFL250 LKFL260 LKLP101OB LKLP102OB LKLP112AOB
COMPATIBLE WALL CONTROLS:
CW5LA CW5WH CWRL4LA CWRL4WH WC1WH WC2WH WR500WH WR501WH
CONTROL TYPE:
Pull Chain
CURRENT DRAW LOW:
0.22
CURRENT DRAW MEDIUM:
0.32
DAMP RATED:
Yes
DOE CLASSIFICATION:
LSSD
IP RATING:
IP20
LEADWIRE:
80
MOTOR REVERSIBLE:
Yes
REGULATED PRODUCT:
Yes
RPM LOW (II):
59
RPM MEDIUM (IV):
81
SAFETY RATING:
UL APPROVED CUL APPROVED
VOLTAGE CYCLES:
60 HZ
WATTS LOW:
14
WATTS MEDIUM:
30
HEIGHT:
14.50
WIDTH:
52.00
WIDTH RANGE:
50-55''
WALL:
YES
FINISH:
RUST
ON DISPLAY IN SHOWROOM:
No
IN STOCK IN SHOWROOM:
No
Standard Style:
Contemporary
ADDITIONAL INFO1:
3177 CFM ON HIGH
ADDITIONAL INFO2:
COMPATIBLE WITH FANIMATION BLUETOOTH FANSYNC AND MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEP
ADDITIONAL INFO3:
LIGHT KIT ADAPTABLE (SOLD SEPARATELY)
ADDITIONAL INFO4:
PULL CHAIN OPERATED
ADDITIONAL INFO5:
SET OF 5 NARROW OVAL BLADES WITH MULTIPLE FINISH OPTIONS INCLUDED
ADDITIONAL INFO6:
Pull Chain Operated
ADDITIONAL INFO7:
Set of 5 blades included with multiple finish options
AIR FLOW CFM1:
3312
CANOPY1:
Diameter- 6.34 Height- 2.83''
LIGHT KIT INCLUDED:
No
AIRFLOW EFFICIENCY LOW1:
150
BLADE REVERSIBLE:
No
CAP INCLUDED:
No
CEC UPLOADED:
Yes
CEILING TO BOTTOM (NO LK):
14.5
CEILING TO BOTTOM (NO LK)1:
13.69
COMPATIBLE LIGHT KITS1:
F401RS F404RS F423RS LK112A LK113WH LK114ARS LK114WRS LK122A LK124ARS LK124WRS LK250 LK500RS LKFL250 LKFL260 LKLP101RS LKLP102RS LKLP112ARS
DOE-FTC UPLOADED:
Yes
MAXIMUM SLOPE DEGREE:
27
MOTOR FINISH METHOD:
Plated
REVERSE SWITCH LOCATION:
Switch Housing
CEILING:
YES
AVAILABLE FOR PURCHASE:
YES
BLADE FINISH METHOD TYPE:
PAINTED
CEILING TO BLADE EDGE:
14
EXEMPT FROM DOE PROCEDURE:
NO
FAN ENERGY STAR 4:
NO
MOTOR FINISH METHOD TYPE:
PAINTED
NUMBER OF BLADES:
5
PRODUCT CERTIFICATION LABEL:
UL
QUANTITY AVAILABLE AT MANUFACTURER:
175
More Info {1}:
3 SPEED AC MOTOR WITH REVERSE SWITCH
More Info {2}:
3177 CFM ON HIGH
More Info {3}:
LIGHT KIT ADAPTABLE (SOLD SEPARATELY)
More Info {4}:
PULL CHAIN OPERATED
More Info {5}:
WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
AVG ENERGY USE WATTS:
32
CANOPY DIAMETER:
5.75 DIA
CANOPY HEIGHT:
2.57 H''
CASE QUANTITY:
1
COMPATIBLE BLADES1:
B6132DC B6132RC B6133TKMH BPD1A BPD4A BPD4BL BPD4MW BPD5A BPP1BR BPP1TN BPP4BR BPP4GR BPP4TN BPW6030CY BPW6030MH BPW6030MP BPW6030TK BPW6090DNA ISD1A ISD1C ISD2A ISD4A ISD4C ISD7A ISP1 ISP1RB ISP2 ISP4 ISP4RB I...
CURRENT DRAW HIGH:
0.4
DOEFTC UPLOADED:
YES
DOWNROD LENGTH:
6
HOUSING DIAMETER:
9.06
INCLUDED CONTROL TYPE:
PULL CHAIN
MAX CEILING SLOPE:
27
MAX WATT:
48
NUMBER OF SPEEDS:
3
RPM HIGH (VI):
114
