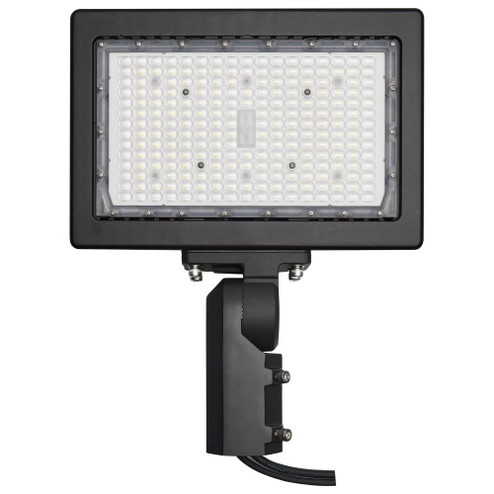

LED Flood Light; 150 Watt; 5000K; Bronze Finish {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.42.6000
- LENGTH:
- 17.36
- LUMENS:
- 20250L
- SHIP CARTON HEIGHT:
- 5.51''
- SHIP CARTON LENGTH:
- 19.49
- SHIP CARTON WIDTH:
- 15.35''
- SHIP WEIGHT:
- 19.52
- WARRANTY:
- 5-YEARS
- BEAM ANGLE:
- 150
- CARTON CUBIC FEET:
- 0.954
- CARTONS PER UNIT:
- 1
- COLOR TEMPRATURE:
- NATURAL LIGHT
- CONNECTION:
- HARDWIRE
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 1-10V DIMMING
- DLC APPROVED:
- YES
- DLC CLASSIFICATION:
- PREMIUM
- DLC ID:
- S-PYBT47
- DLC PRIMARY USE:
- ARCHITECTURAL FLOOD AND SPOT LUMINAIRES
- FCC COMPLIANT:
- YES
- FINISH:
- BRONZE
- HAS CAMERA:
- NO
- IC RATED:
- YES
- INDOOR OUTDOOR:
- OUTDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP65
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LOCATION RATING:
- WET
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- POLE/POST
- OPERATING FREQUENCY:
- 50-60HZ
- OPERATING TEMP:
- -40C (-40F) TO +50C (+122F)
- PACK TYPE:
- BOX
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- SPECIFICATION NOTES:
- ADD ON PHOTOCELL SKU 86-212 IS ONLY RATED FOR 120-277 VOLT
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 6KV
- TEMPERATURE (CCT):
- 5000K
- WATTAGE SELECTABLE:
- NO
- WEIGHT LB.:
- 15.65
- WIRE COLOR:
- WHITE / BLACK / GREEN / GRAY / YELLOW
- WIRE QUANTITY:
- 5
- WIRE TEMP RATING:
- 105C (221F)
- QUANTITY AVAILABLE AT MANUFACTURER:
- 163
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 2.83
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 9.44
- WIDTH RANGE:
- 0-15''
- AMPS:
- 1.250-0.432A
- SDS SHEET LINK:
- #REF!
- FEATURE 1:
- LENGTH: 17.36 INCHES WIDTH: 9.44 INCHES HEIGHT: 2.83 INCHES''
- FEATURE 2:
- WET LOCATION RATED FOR OUTDOOR USE
- FEATURE 3:
- BRONZE FINISH
- FEATURE 4:
- 20250 LUMENS
- FEATURE 5:
- SUPERIOR 80 CRI LIGHT QUALITY
- FEATURE 6:
- RATED FOR 50000 HOURS
- FEATURE 7:
- DIMMABLE
- FEATURE 8:
- 5 YEAR LIMITED WARRANTY
- FEATURE 9:
- FCC COMPLIANT
- LONG DESCRIPTION:
- SATCO NUVO'S 65-620R1 150 WATT FLOOD LIGHT ADDS INTRIGUE TO THE OUTDOOR ARCHITECTURAL LANDSCAPE. THIS COMMERCIAL LED FLOOD LIGHT PROVIDES EVEN AND CONSISTENT LIGHT DISTRIBUTION WHILE OFFERING A WIDE RANGE OF MOUNTING OPTIONS. DIMMABLE W...
- QUANTITY IN PACK:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- NUMBER OF LAMPS:
- 1
- LAMPS:
- YES
- BULB KELVIN:
- NATURAL LIGHT
- BULB SHAPE:
- INTEGRATED LED
- ANSI BASE:
- INTEGRATED
- BEAM SPREAD:
- 150
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- INCANDESCENT EQUIVALENT:
- 450W
- OPERATING TEMPRATURE:
- -40F TO +122F (-40C TO +50C)
- REPLACEABLE LIGHT SOURCE:
- NO
- REPLACES:
- #REF!
- SAFETY LISTING:
- CULUS - CERTIFIED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- IMAGE INFO:
- ''65-620R1.JPG:DEFAULT''
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- NATURAL LIGHT
- EACH HEIGHT:
- 5.51''
- EACH LENGTH:
- 19.49
- EACH WIDTH:
- 15.35''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.954
- EACH QUANTITY:
- 1
- EFFICACY:
- 135.00 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- SATCO NUVO'S 150 WATT FLOOD LIGHT ADDS INTRIGUE TO THE OUTDOOR ARCHITECTURAL LANDSCAPE. THIS COMMERCIAL LED FLOOD LIGHT PROVIDES EVEN AND CONSISTENT LIGHT DISTRIBUTION WHILE OFFERING A WIDE RANGE OF MOUNTING OPTIONS. DIMMABLE WITH A BRO...
- SHORT DESCRIPTION:
- LED FLOOD 150W 5000K DIM
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 15%
- ORDER IN MULTIPLES OF:
- 1
- STANDARD STYLE:
- FLOOD LIGHTS
- CATEGORY:
- OUTDOOR
- SUB CATEGORY:
- FLOOD LIGHT
- COUNTRY OF ORIGIN:
- VIETNAM
- 4/29/2025 14:
- 17
- HAS EMERGENCY BATTERY:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- DIMMING TYPE:
- 1-10V DIMMING ONLY
- FIELD SELECTABLE:
- NO
- FIXTURE SHAPE:
- RECTANGLE
- VOLTAGE TEXT:
- AC ONLY RANGE VOLTAGE
