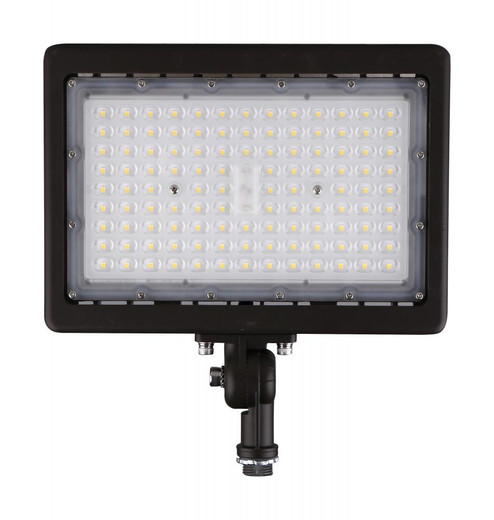

LED Flood Light; 90 Watt; 4000K; Bronze Finish {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- STYLE:
- Utility
- BULB DIMMABLE:
- 1-10V Dimming Only
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- HARMONIZED CODES:
- 9405.42.6000
- LENGTH:
- 10.44
- LUMENS:
- 12651L
- SHIP CARTON HEIGHT:
- 4.13''
- SHIP CARTON LENGTH:
- 12.99
- SHIP CARTON WIDTH:
- 13.78''
- SHIP WEIGHT:
- 6.16
- WARRANTY:
- 5-YEARS
- WIRE INCLUDED:
- 19.69
- BEAM ANGLE:
- 150
- CARTON CUBIC FEET:
- 0.4278
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- Cool White
- CRI:
- 80+
- DLC APPROVED:
- Yes
- DLC ID:
- PL3MH1RMXSC2
- IP RATING:
- IP65
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -40C (-40F) TO +50C (+122F)
- PACK TYPE:
- Box
- WIRE COLOR:
- WHITE / BLACK / GREEN / GRAY / YELLOW
- HEIGHT:
- 2.25
- WIDTH:
- 11.50
- FINISH:
- UTILITY
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- HEIGHT RANGE:
- 0-15''
- BULB SHAPE:
- INTEGRATED LED
- AVAILABLE FOR PURCHASE:
- YES
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 6KV
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 60
- ANSI BASE:
- INTEGRATED
- CONNECTION:
- HARDWIRE
- DIMMING TYPE:
- 0-10V DIMMING
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- ARCHITECTURAL FLOOD AND SPOT LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- WIDE RANGE OF MOUNTING SYSTEM OPTIONS
- FEATURE 2:
- DLC PREMIUM CERTIFIED
- FEATURE 3:
- IP65 RATED
- FEATURE 4:
- 5 YEAR WARRANTY
- FEATURE 5:
- VOLTAGE RANGE: 120-277V
- FEATURE 6:
- 50000 AVERAGE RATED HOURS OF USE
- FEATURE 7:
- 50000 AVERAGE RATED HOURS OF USE
- FINISH FAMILY:
- BRONZE
- IC RATED:
- YES
- INDOOR OUTDOOR:
- OUTDOOR
- LENS FINISH:
- FROST
- LENS MATERIAL:
- POLYCARBONATE (PC)
- MATERIAL:
- ALUMINUM ALLOY
- MOUNTING PROCEDURE:
- POLE/POST
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 50-60HZ
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 4000K
- WEIGHT LB.:
- 5.51
- WIRE QUANTITY:
- 5
- WIRE TEMP RATING:
- 105C (221F)
- LAMPS:
- YES
- AMPS:
- 0.750-0.325A
- SDS SHEET LINK:
- #REF!
- LONG DESCRIPTION:
- SATCO NUVO'S 65-617 90-WATT LED FLOOD LIGHT PROVIDES ILLUMINATION AND SECURITY TO THE OUTDOOR ARCHITECTURAL LANDSCAPE. THIS DIMMABLE ALUMINUM ALLOY FLOOD LIGHT COMES IN A BRONZE FINISH AND OFFERS A WIDE RANGE OF MOUNTING OPTIONS. DURABLE...
- BULB KELVIN:
- COOL WHITE
- BEAM SPREAD:
- 150
- CA PROP-65:
- LEAD
- INCANDESCENT EQUIVALENT:
- 300W
- OPERATING TEMPRATURE:
- -40F TO +122F (-40C TO +50C)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - CERTIFIED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- CEC WEB TEXT:
- LAWFUL FOR SALE
- WATTAGE SELECTABLE:
- NO
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- COOL WHITE
- EACH HEIGHT:
- 4.13''
- EACH LENGTH:
- 12.99
- EACH WIDTH:
- 13.78''
- TARIFF CODE:
- 9405.42.6000
- WIRE LENGTH:
- 19.69
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.4278
- EACH QUANTITY:
- 1
- EFFICACY:
- 140.57 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 8
- ROMANCE COPY:
- SATCO NUVO'S 90-WATT LED FLOOD LIGHT PROVIDES ILLUMINATION AND SECURITY TO THE OUTDOOR ARCHITECTURAL LANDSCAPE. THIS DIMMABLE ALUMINUM ALLOY FLOOD LIGHT COMES IN A BRONZE FINISH AND OFFERS A WIDE RANGE OF MOUNTING OPTIONS. DURABLE AND VE...
- SHORT DESCRIPTION:
- LED FLOOD 90W 4000K
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 15%
- B_U_G_RATING:
- B3-U3-G2
- ORDER IN MULTIPLES OF:
- 1
- IMAGE INFO:
- 4/29/2025 4:23
- CATEGORY:
- OUTDOOR
- SUB CATEGORY:
- FLOOD LIGHT
- COUNTRY OF ORIGIN:
- VIETNAM
- 4/30/2025 14:
- 18
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- IOT ENABLED:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- FIELD SELECTABLE:
- NO
- FIXTURE SHAPE:
- RECTANGLE
- VOLTAGE TEXT:
- AC ONLY RANGE VOLTAGE
