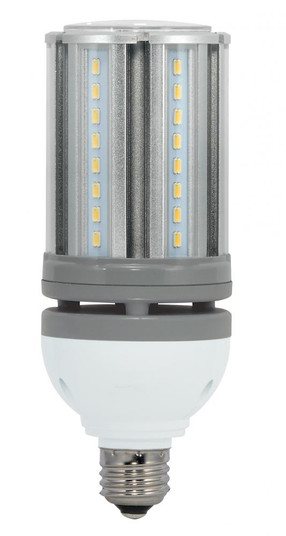

18 Watt LED HID Replacement; Amber 585nm; Medium base; 100-277 Volt {ADDITIONAL FINISH INFORMATION: ''No Finish''}
- BULB DIMMABLE:
- Non-Dimmable
- BULB HOURS:
- 50000
- BULB SHAPE:
- Corncob
- DIAMETER:
- 2.75
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 6.88
- LUMENS:
- 1100L
- SHIP CARTON HEIGHT:
- 7.71''
- SHIP CARTON LENGTH:
- 3.38
- SHIP CARTON WIDTH:
- 3.38''
- SHIP WEIGHT:
- 1.04
- VOLTS:
- 100V-277V
- WARRANTY:
- 5 Year Limited - Hi-Pro
- AC/DC:
- AC 90-305V
- BEAM SPREAD:
- 300
- BULB ANSI BASE:
- E26
- BULB BASE:
- Medium
- BULB FINISH:
- Clear
- BURNING POSITION:
- Universal
- CARTON CUBIC FEET:
- 0.051
- CARTONS PER UNIT:
- 1
- CEC:
- Exempt - Color Lamp
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- FLUORESCENT EQUIVALENT:
- 32W
- HID EQUIVALENT:
- 70W
- HOUSING COLOR:
- WHITE/GREY
- INCANDESCENT EQUIVALENT:
- 70W
- IP RATING:
- IP65
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Damp
- OPERATING TEMP:
- -20C (-4F) TO +65C (+149F)
- PACK TYPE:
- Box
- WATTS:
- 18W
- WIDTH:
- 2.75
- WIDTH RANGE:
- 0-15''
- LAMPS:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Non-Dimmable
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 250
- ADDITIONAL INFO:
- AMBER COLOR - 585NM
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS- DIRECT WIRE ONLY 100V-277V
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS FINISH:
- CLEAR
- MATERIAL:
- ALUMINUM / PLASTIC
- MINIMUM COMPARTMENT SIZE:
- LENGTH: 8.5 IN. WIDTH: 6 IN. DEPTH: 6 IN.''
- OPERATING FREQUENCY:
- 50-60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- SDS/LED_LAMP.PDF
- TECHNOLOGY:
- LED
- CCT SELECTABLE:
- NO
- ORDER IN MULTIPLES OF:
- 1
- More Info {1}:
- AMBER COLOR - 585NM
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- CRI:
- 80+
- BAA COMPLIANT:
- NO
- EFFICACY:
- 61.11 LPW
- ENCLOSED FIXTURE USE:
- YES
- SHORT DESCRIPTION:
- 18W/LED/HID/AMBER/100-277V E26
- STYLE:
- CONTEMPORARY
- TITLE 20 COMPLIANT:
- NO
- EA LENGTH:
- 3.38
- SHAP CARTON WIDTH:
- 3.38''
- FLOURESCENT EQUIVALENT:
- 32W
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
