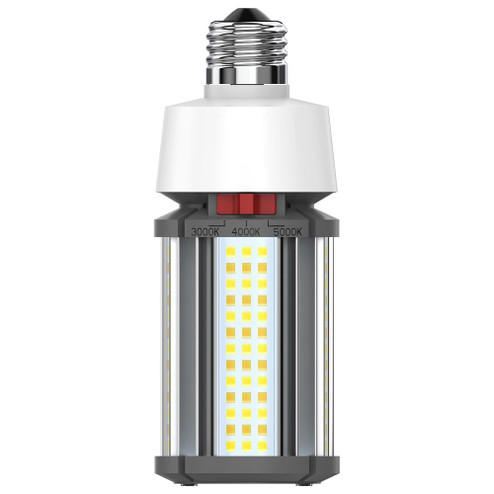

18 Watt LED HID Replacement; CCT Selectable; Medium Base; 277-347 Volt; ColorQuick Technology
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 263
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 2.36
- WIDTH RANGE:
- 0-15''
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3000K/4000K/5000K
- BULB SHAPE:
- CORNCOB
- DIAMETER:
- 2.36
- DIMMABLE:
- NON-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 6.22
- LUMENS:
- 2340L/2520L/2430L
- SHIP CARTON HEIGHT:
- 2.83''
- SHIP CARTON LENGTH:
- 8.26
- SHIP CARTON WIDTH:
- 2.83''
- SHIP WEIGHT:
- 0.7
- VOLTS:
- 277V-347V
- WARRANTY:
- 5 YEAR LIMITED - HI-PRO
- WEIGHT:
- 0.57
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- BEAM SPREAD:
- 300
- BULB ANSI BASE:
- E26
- BULB BASE:
- MEDIUM
- BULB FINISH:
- WHITE
- BURNING POSITION:
- UNIVERSAL
- CARTON CUBIC FEET:
- 0.0383
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- EXEMPT - VOLTAGE > 130V
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- CRI:
- 80
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- MOL: 6.22 INCHES MOD: 2.36 INCHES
- FEATURE 2:
- CORNCOB SHAPE
- FEATURE 3:
- WHITE FINISH
- FEATURE 4:
- MEDIUM BASE
- FEATURE 5:
- 300 DEGREE BEAM SPREAD
- FEATURE 6:
- RATED FOR 50000 HOURS
- FEATURE 7:
- CCT SELECTABLE
- FEATURE 8:
- 5 YEAR LIMITED WARRANTY
- FEATURE 9:
- DAMP RATED FOR INDOOR AND OUTDOOR USE
- HID EQUIVALENT:
- 70W
- HOUSING COLOR:
- DARK GRAY
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP64
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LENS MATERIAL:
- PLASTIC
- LOCATION RATING:
- DAMP
- LONG DESCRIPTION:
- SATCO'S S23160 18 WATT CORNCOB LAMP IS THE LAMP OF CHOICE FOR LARGE SCALE APPLICATIONS. ILLUMINATE GYMNASIUMS WAREHOUSES OR ANY VENUE WITH HIGH CEILINGS REQUIRING SUPERIOR LIGHT OUTPUT. THIS CCT SELECTABLE LAMP DELIVERS 50000 HOURS OF C...
- MATERIAL:
- ALUMINUM / POLYCARBONATE (PC)
- MINIMUM COMPARTMENT SIZE:
- LENGTH: 8.46 IN. WIDTH: 6.00 IN. HEIGHT: 6.00 IN.''
- NSF APPROVED:
- NO
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMP:
- -30C (-22F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- NO
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- TECHNOLOGY:
- LED
- WATTAGE SELECTABLE:
- NO
- WATTS:
- 18W
- LAMPS:
- YES
- IMAGE INFO:
- ''''
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 4KV
- More Info {1}:
- 300 DEGREE BEAM SPREAD
- More Info {2}:
- 5 YEAR LIMITED WARRANTY
- More Info {3}:
- CCT SELECTABLE
- More Info {4}:
- CORNCOB SHAPE
- More Info {5}:
- DAMP RATED FOR INDOOR AND OUTDOOR USE
- More Info {6}:
- MEDIUM BASE
- More Info {7}:
- MOL: 6.22 INCHES MOD: 2.36 INCHES
- More Info {8}:
- RATED FOR 50000 HOURS
- DLC APPROVED:
- NO
- ORDER IN MULTIPLES OF:
- 1
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 90W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- EFFICACY:
- 130.00/140.00/135.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 16
- ROMANCE COPY:
- SATCO'S 18 WATT CORNCOB LAMP IS THE LAMP OF CHOICE FOR LARGE SCALE APPLICATIONS. ILLUMINATE GYMNASIUMS WAREHOUSES OR ANY VENUE WITH HIGH CEILINGS REQUIRING SUPERIOR LIGHT OUTPUT. THIS CCT SELECTABLE LAMP DELIVERS 50000 HOURS OF CLEAN E...
- SHORT DESCRIPTION:
- 18W/LED/CCT/277-347V/E26
- STYLE:
- UTILITY
- TITLE 20 COMPLIANT:
- NO
- CA PROP-65:
- LEAD
- BULB DIMMABLE:
- NON-DIMMABLE
- EA LENGTH:
- 8.26
- SHAP CARTON WIDTH:
- 2.83''
