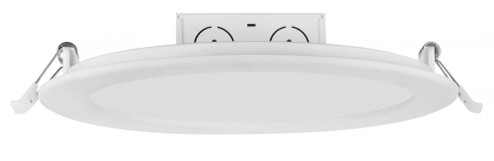

18 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 3000K; 120 volt; Dimmable {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 40000
- BULB KELVIN:
- Warm White
- BULB TYPE:
- LED
- DIAMETER:
- 8.69
- HARMONIZED CODES:
- 9405.11.8010
- LUMENS:
- 1300L
- SHIP CARTON HEIGHT:
- 10.04''
- SHIP CARTON LENGTH:
- 10.04
- SHIP CARTON WIDTH:
- 2.74''
- WARRANTY:
- 5 Year Limited - Fixtures
- BEAM SPREAD:
- 100
- CA PROP-65:
- Lead
- CARTON CUBIC FEET:
- 0.1598
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- CEC TERSE:
- Lawful for sale in California
- CEC WEB TEXT:
- California T24 Listed
- CEILING APERTURE:
- 8.10 in. Cutout
- CRI:
- 90
- INCANDESCENT EQUIVALENT:
- 85W
- MAX DRYWALL THICKNESS:
- 7/8 in.
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- PACK TYPE:
- Box
- REPLACEABLE LIGHT SOURCE:
- No
- SAFETY LISTING:
- CETLUS - LISTED
- HEIGHT:
- 2.00
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 8.69
- WIDTH RANGE:
- 0-15''
- CEILING:
- YES
- WALL:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- DIMMABLE:
- Yes-Dimmable
- AVAILABLE FOR PURCHASE:
- NO
- BULB SHAPE:
- INTEGRATED LED
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 3637
- ANSI BASE:
- INTEGRATED
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE
- ES UNIQUE ID:
- ESID-2382157
- FCC COMPLIANT:
- YES
- FEATURE 1:
- CANLESS RECESS LIGHTING ENGINEERED FOR NEW CONSTRUCTIONS DROP CEILINGS MULTI-LEVEL CONSTRUCTIONS AND SHALLOW CEILINGS.
- FEATURE 2:
- FIXTURE DIMENSIONAL SPECIFICATIONS (IN INCHES) HEIGHT: 2.00 DIAMETER: 8.69''
- FEATURE 3:
- DIRECT WIRED INSTALLATION. SUITABLE FOR DAMP LOCATIONS INDOOR USE ONLY. CEILING MOUNT INSTALLATION HARDWARE INCLUDED.
- FEATURE 4:
- INTEGRATED LED
- FEATURE 5:
- 90 CRI SUPERIOR QUALITY LED LIGHT RATED FOR 40000 HOURS FOR AN ENERGY EFFICIENT LIGHTING OPTION.
- FEATURE 6:
- 5 YEAR LIMITED WARRANTY. SEE MANUFACTURER WEBSITE FOR DETAILS.
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- ROUND
- HAS DRIVER:
- YES
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- LONG DESCRIPTION:
- SATCO'S S11717 8 INCH ROUND 18 WATT LED DIRECT WIRE EDGE-LIT ULTRA-THIN CANLESS RECESSED FIXTURE MAKES DOWNLIGHTING CONVENIENT TO INSTALL IN MULTI-LEVEL SPACES. DIMMABLE WITH SUPERIOR 90 CRI LIGHT IN 3000K THIS FIXTURE IS ENGINEERED F...
- MATERIAL:
- POLYBUTYLENE TEREPHTHALATE (PBT) / POLYAMIDE (PA) / POLYCARBONATE (PC)
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- >.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 3000K
- TRIM COLOR:
- WHITE
- WEIGHT LB.:
- 0.88
- LAMPS:
- YES
- STYLE:
- UTILITY
- AMPS:
- 0.150A
- CCT SELECTABLE:
- NO
- More Info {1}:
- 5 YEAR LIMITED WARRANTY. SEE MANUFACTURER WEBSITE FOR DETAILS.
- More Info {2}:
- 90 CRI SUPERIOR QUALITY LED LIGHT RATED FOR 40000 HOURS FOR AN ENERGY EFFICIENT LIGHTING OPTION.
- More Info {3}:
- CANLESS RECESS LIGHTING ENGINEERED FOR NEW CONSTRUCTIONS DROP CEILINGS MULTI-LEVEL CONSTRUCTIONS AND SHALLOW CEILINGS.
- More Info {4}:
- DIRECT WIRED INSTALLATION. SUITABLE FOR DAMP LOCATIONS INDOOR USE ONLY. CEILING MOUNT INSTALLATION HARDWARE INCLUDED.
- More Info {5}:
- FIXTURE DIMENSIONAL SPECIFICATIONS (IN INCHES) HEIGHT: 2.00 DIAMETER: 8.69''
- More Info {6}:
- INTEGRATED LED
- SDS CLASS:
- LED_LAMP
- WATTAGE SELECTABLE:
- NO
- AIR TIGHT:
- YES
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 72.22 LPW
- JA8 COMPLIANT:
- YES
- MINIMUM COMPARTMENT SIZE:
- DIAMETER: 8.66 IN. HEIGHT: 2.36 IN.''
- ROMANCE COPY:
- THE 8 INCH ROUND 18 WATT LED DIRECT WIRE EDGE-LIT ULTRA-THIN RECESSED FIXTURE MAKES DOWNLIGHTING CONVENIENT TO INSTALL IN MULTI-LEVEL SPACES. DIMMABLE WITH SUPERIOR 90 CRI LIGHT IN 3000K THIS FIXTURE IS ENGINEERED FOR NEW CONSTRUCTIONS...
- SHORT DESCRIPTION:
- 18WLED/DW/EL/8/30K/120V
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
