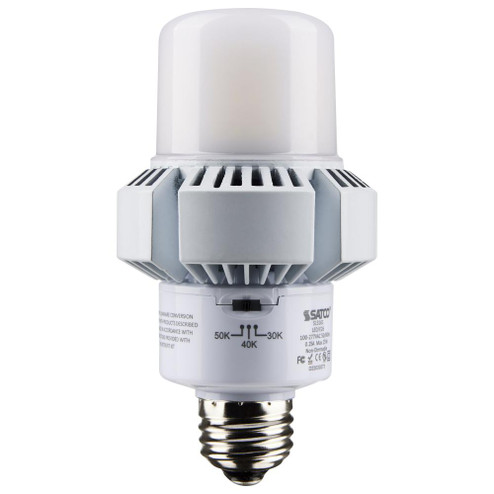

25 Watt; A-Plus 23; LED; CCT Selectable 3K/4K/5K; Medium base; 100-277 Volt; ColorQuick Technology
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 86
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 2.83
- WIDTH RANGE:
- 0-15''
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3000K/4000K/5000K
- BULB SHAPE:
- AP23
- DIAMETER:
- 2.83
- DIMMABLE:
- NON-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0010
- LENGTH:
- 5.12
- LUMENS:
- 3000L/3375L/3250L
- SHIP CARTON HEIGHT:
- 5.7''
- SHIP CARTON LENGTH:
- 2.99
- SHIP CARTON WIDTH:
- 2.99''
- SHIP WEIGHT:
- 0.63
- VOLTS:
- 100V-277V
- WARRANTY:
- 5 YEAR LIMITED - HI-PRO
- WEIGHT:
- 0.61
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- BEAM SPREAD:
- 280
- BULB ANSI BASE:
- E26
- BULB BASE:
- MEDIUM
- BULB FINISH:
- WHITE
- BURNING POSITION:
- UNIVERSAL
- CARTON CUBIC FEET:
- 0.0295
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- EXEMPT - >2600 LUMENS
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- CRI:
- 80
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- ADVANCED HEAT SINK DESIGN ENSURES LONG LIFESPAN LESS MAINTENANCE
- FEATURE 2:
- COLORQUICK TECHNOLOGY - INTEGRATED SWITCH ALLOWS FOR 3000K 4000K AND 5000K CCT SELECTIONS
- FEATURE 3:
- DAMP LOCATION RATED FOR INDOOR OR OUTDOOR USE
- FEATURE 4:
- RATED FOR TOTALLY ENCLOSED FIXTURES
- FEATURE 5:
- REDUCED JACKET SIZE AND BUILT-IN SURGE PROTECTION
- FEATURE 6:
- FCC/ROHS COMPLIANT
- FEATURE 7:
- SUPERIOR 80 CRI LIGHT QUALITY
- FLUORESCENT EQUIVALENT:
- 65W
- HAS DRIVER:
- NO
- HAS EMERGENCY BATTERY:
- NO
- HID EQUIVALENT:
- 100W-150W
- HOUSING COLOR:
- WHITE
- INCANDESCENT EQUIVALENT:
- 200W
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LAMP FILAMENT:
- LED
- LENS FINISH:
- FROST
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LOCATION RATING:
- DAMP
- LONG DESCRIPTION:
- S13161 SATCO'S 25-WATT MEDIUM BASE A-PLUS 23 LAMP IS ONE OF THE NEWEST ADDITIONS TO THE HI-PRO LED FAMILY PROVIDING UP TO 85% ENERGY SAVINGS AND ADVANCED FEATURES. COLORQUICK CCT SELECTABLE TECHNOLOGY MEANS MORE VERSATILITY AND CUSTOM-T...
- MATERIAL:
- ALUMINUM
- MINIMUM COMPARTMENT SIZE:
- LENGTH: 6 IN. WIDTH: 6 IN. HEIGHT: 8.5 IN.''
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMP:
- -22C (-30F) TO +45C (+113F)
- PACK TYPE:
- BOX
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SPECIFICATION NOTES:
- LUMEN/WATT/CCT RATIO CHART IN DOCUMENTS.
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 1KV
- TECHNOLOGY:
- LED
- WATTAGE SELECTABLE:
- NO
- WATTS:
- 25W
- LAMPS:
- YES
- IMAGE INFO:
- ''''
- IP RATING:
- IP64
- More Info {1}:
- ADVANCED HEAT SINK DESIGN ENSURES LONG LIFESPAN LESS MAINTENANCE
- More Info {2}:
- COLORQUICK TECHNOLOGY - INTEGRATED SWITCH ALLOWS FOR 3000K 4000K AND 5000K CCT SELECTIONS
- More Info {3}:
- DAMP LOCATION RATED FOR INDOOR OR OUTDOOR USE
- More Info {4}:
- FCC/ROHS COMPLIANT
- More Info {5}:
- RATED FOR TOTALLY ENCLOSED FIXTURES
- More Info {6}:
- REDUCED JACKET SIZE AND BUILT-IN SURGE PROTECTION
- More Info {7}:
- SUPERIOR 80 CRI LIGHT QUALITY
- DLC APPROVED:
- NO
- ORDER IN MULTIPLES OF:
- 1
- BAA COMPLIANT:
- NO
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- EFFICACY:
- 120.00/135.00/130.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 13
- ROMANCE COPY:
- SATCO'S NEWEST ADDITIONS TO THE HI-PRO LED FAMILY PROVIDES UP TO 85% IN ENERGY SAVINGS AND ADVANCED FEATURES. CCT AND WATTAGE SELECTABLE CAPABILITY MEANS MORE VERSATILITY AND CUSTOM-TAILORED LIGHT FOR SPECIFIC APPLICATIONS. DESIGNED TO PR...
- SHORT DESCRIPTION:
- 25W/AP23/LED/CCT/100-277V/E26
- STYLE:
- CONTEMPORARY
- TITLE 20 COMPLIANT:
- NO
- CA PROP-65:
- LEAD
- BULB DIMMABLE:
- NON-DIMMABLE
- EA LENGTH:
- 2.99
- SHAP CARTON WIDTH:
- 2.99''
- FLOURESCENT EQUIVALENT:
- 65W
