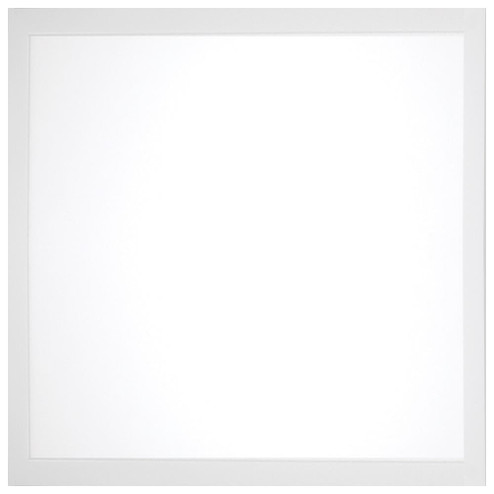

LED Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 120-277 Volt; ColorQuick Technology; PowerQuick Technology; White Finish {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- ADDITIONAL INFO:
- DRIVER SPECS - VDC38-48V 430/620/810MA
- BULB HOURS:
- 50000
- BULB KELVIN:
- NEUTRAL WHITE TO NATURAL LIGHT
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 23.75
- LUMENS:
- 2200L-4600L
- SHIP CARTON HEIGHT:
- 25.2''
- SHIP CARTON LENGTH:
- 25
- SHIP CARTON WIDTH:
- 2.56''
- WARRANTY:
- 5-YEARS
- WIRE INCLUDED:
- 3.54
- AMPS:
- 0.167-0.072/0.250-0.108/0.333-0.144A
- ANSI BASE:
- INTEGRATED
- BEAM SPREAD:
- 120
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 0.9333
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- CONNECTION:
- HARDWIRE
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- DLC CLASSIFICATION:
- STANDARD STANDARD
- DLC PRIMARY USE:
- 2X2 LUMINAIRES FOR AMBIENT LIGHTING OF INTERIOR COMMERCIAL SPACES LOW-BAY LUMINAIRES FOR COMMERCIAL AND INDUSTRIAL BUILDINGS
- FCC COMPLIANT:
- YES
- FIXTURE SHAPE:
- SQUARE
- FLICKER FREE:
- YES
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP20
- LENS MATERIAL:
- POLY METHYL METHACRYLATE (PMMA)
- MATERIAL:
- ALUMINUM / STEEL
- NSF APPROVED:
- YES
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMPRATURE:
- +1.4F TO +113F (-17C TO +45C)
- PACK TYPE:
- BOX
- PANEL SIZE:
- 2X2
- PHOTOCELL:
- NO PHOTOCELL
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CETLUS - LISTED
- SDS CLASS:
- LED_FIXTURE
- SDS SHEET LINK:
- #REF!
- TEMPERATURE (CCT):
- 3500K/4000K/5000K
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 4.85
- WIRE GAUGE:
- 14
- WIRE TEMP RATING:
- 80C (176F)
- QUANTITY AVAILABLE AT MANUFACTURER:
- 15494
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 1.50
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 23.75
- WIDTH RANGE:
- 20-25''
- FEATURE 1:
- 3500K/4000K/5000K CCT SELECTABLE
- FEATURE 2:
- 20W/30W/40W WATTAGE SELECTABLE
- FEATURE 3:
- BACKLIT LED TECHNOLOGY
- FEATURE 4:
- FLICKER FREE EVEN LIGHT DISTRIBUTION
- FEATURE 5:
- 0-10V DIMMABLE
- FEATURE 6:
- 50000 AVERAGE RATED HOURS OF USE
- FEATURE 7:
- DLC LISTED
- FEATURE 8:
- TITLE 20 COMPLAINT
- LONG DESCRIPTION:
- SATCO NUVO'S LED BACKLIT 2X2 FLAT PANEL 65-571R1 FEATURES OUR NEW COLORQUICK AND POWERQUICK TECHNOLOGIES. WITH THREE POPULAR WATTAGES AND THREE DIFFERENT CCT OPTIONS AVAILABLE CUSTOMERS CAN CHOOSE FROM NINE POSSIBLE POWER AND COLOR CONFIG...
- MOUNTING PROCEDURE:
- CEILING
- More Info {1}:
- 0-10V DIMMABLE
- More Info {2}:
- 20W/30W/40W WATTAGE SELECTABLE
- More Info {3}:
- 3500K/4000K/5000K CCT SELECTABLE
- More Info {4}:
- 50000 AVERAGE RATED HOURS OF USE
- More Info {5}:
- BACKLIT LED TECHNOLOGY
- More Info {6}:
- DLC LISTED
- More Info {7}:
- FLICKER FREE EVEN LIGHT DISTRIBUTION
- More Info {8}:
- TITLE 20 COMPLAINT
- INCANDESCENT EQUIVALENT:
- 100W-150W
- REPLACES:
- #REF!
- IMAGE INFO:
- ''65-571R1.JPG:DEFAULT''
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- NEUTRAL WHITE TO NATURAL LIGHT
- EACH HEIGHT:
- 25.2''
- EACH LENGTH:
- 25
- EACH WIDTH:
- 2.56''
- TARIFF CODE:
- 9405.11.6020
- WIRE LENGTH:
- 3.54
- AIR TIGHT:
- NO
- BAA COMPLIANT:
- NO
- BEAM ANGLE:
- 120
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.9333
- EACH QUANTITY:
- 1
- EFFICACY:
- 110.00/113.33/115.00 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 11
- ROMANCE COPY:
- SATCO NUVO'S LED BACKLIT PANEL FIXTURES FEATURE OUR NEW COLORQUICK AND POWERQUICK TECHNOLOGIES IN A VARIETY OF SIZES. WITH THREE POPULAR WATTAGES AND THREE DIFFERENT CCT OPTIONS AVAILABLE CUSTOMERS CAN CHOOSE FROM NINE POSSIBLE POWER AND ...
- SHORT DESCRIPTION:
- 2X2 LED BACKLIT FLAT PANEL
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 9%
- ORDER IN MULTIPLES OF:
- 1
- FINISH:
- ''FINISH'':''WHITE''
- STANDARD STYLE:
- ''WIRE TEMP RATING'':''80C (176F)''
- CATEGORY:
- FLAT PANEL
- SUB CATEGORY:
- BACKLIT
- COUNTRY OF ORIGIN:
- VIETNAM
- 5/2/2025 21:
- 27
- 5/5/2025 21:
- 26
- 2025-05-07 14:
- 18:49
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- DEFAULT CCT:
- 4000K
- DEFAULT LUMENS:
- 2200L
- DIMMING TYPE:
- 0-10V DIMMING
- FIELD SELECTABLE:
- YES
- VOLTAGE TEXT:
- AC ONLY RANGE VOLTAGE
