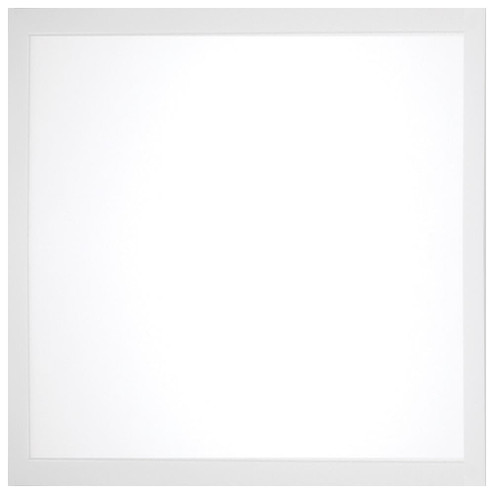

LED Emergency Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 100-277 Volt; ColorQuick Technology; PowerQuick Technology {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB KELVIN:
- WARM TO COOL WHITE
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 23.75
- LUMENS:
- 2200L-4600L
- SHIP CARTON HEIGHT:
- 25.2''
- SHIP CARTON LENGTH:
- 25
- SHIP CARTON WIDTH:
- 4.33''
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- WIRE INCLUDED:
- 3.54
- AMPS:
- 0.200-0.072/0.300-0.108/0.400-0.144A
- ANSI BASE:
- INTEGRATED
- BEAM SPREAD:
- 120
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 1.5786
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- CONNECTION:
- HARDWIRE
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- DLC CLASSIFICATION:
- STANDARD
- DLC PRIMARY USE:
- 2X2 LUMINAIRES FOR AMBIENT LIGHTING OF INTERIOR COMMERCIAL SPACES
- FCC COMPLIANT:
- YES
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- SQUARE
- FLICKER FREE:
- YES
- HAS EMERGENCY BATTERY:
- YES
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP20
- LENS FINISH:
- FROST
- LENS MATERIAL:
- POLY METHYL METHACRYLATE (PMMA)
- MATERIAL:
- ALUMINUM / STEEL
- NSF APPROVED:
- YES
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMPRATURE:
- -17C (+1.4F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PANEL SIZE:
- 2X2
- PHOTOCELL:
- NO PHOTOCELL
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CETLUS
- SDS CLASS:
- LED_FIXTURE
- SDS SHEET LINK:
- #REF!
- TEMPERATURE (CCT):
- 3500K/4000K/5000K
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 7.94
- WIRE GAUGE:
- 14
- WIRE TEMP RATING:
- 80C (176F)
- QUANTITY AVAILABLE AT MANUFACTURER:
- 595
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.06
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 23.75
- WIDTH RANGE:
- 20-25''
- FEATURE 1:
- 3500K/4000K/5000K CCT SELECTABLE
- FEATURE 2:
- 20W/30W/40W WATTAGE SELECTABLE
- FEATURE 3:
- INTEGRATED EMERGENCY BATTERY BACKUP WITH 90-MINUTE RUN TIME
- FEATURE 4:
- FLICKER FREE EVEN LIGHT DISTRIBUTION
- FEATURE 5:
- 0-10V DIMMABLE
- FEATURE 6:
- 50000 AVERAGE RATED HOURS OF USE
- FEATURE 7:
- DLC LISTED
- FEATURE 8:
- TITLE 20 COMPLAINT
- LONG DESCRIPTION:
- SATCO
- IMAGE INFO:
- ''''
- ADDITIONAL INFO:
- DRIVER SPECS - VDC38-48V 430/620/810MA
- MOUNTING PROCEDURE:
- CEILING
- More Info {1}:
- 0-10V DIMMABLE
- More Info {2}:
- 20W/30W/40W WATTAGE SELECTABLE
- More Info {3}:
- 3500K/4000K/5000K CCT SELECTABLE
- More Info {4}:
- 50000 AVERAGE RATED HOURS OF USE
- More Info {5}:
- DLC LISTED
- More Info {6}:
- FLICKER FREE EVEN LIGHT DISTRIBUTION
- More Info {7}:
- INTEGRATED EMERGENCY BATTERY BACKUP WITH 90-MINUTE RUN TIME
- More Info {8}:
- TITLE 20 COMPLAINT
- INCANDESCENT EQUIVALENT:
- 150W-175W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 25.2''
- EACH LENGTH:
- 25
- EACH WIDTH:
- 4.33''
- TARIFF CODE:
- 9405.11.6020
- WIRE LENGTH:
- 3.54
- AIR TIGHT:
- NO
- BAA COMPLIANT:
- NO
- BEAM ANGLE:
- 120
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 1.5786
- EACH QUANTITY:
- 1
- EFFICACY:
- 110.00/113.33/115.00 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 11
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 2X2 LED EM BACKLIT FLAT PANEL
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 16.30%
