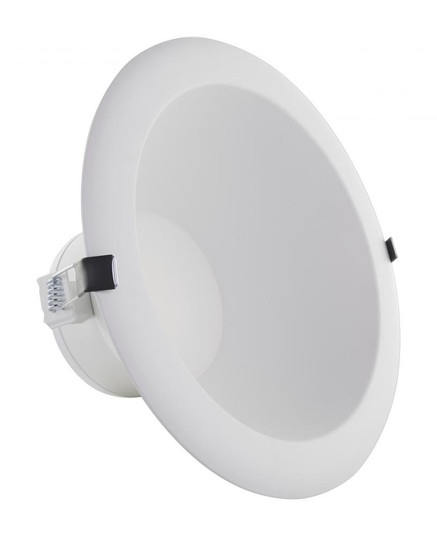

46 Watt Commercial LED Downlight; 10 in.; Color Adjustable; Lumen Adjustable; 120-277 volt {ADDITIONAL FINISH INFORMATION: ''White''}
- ADDITIONAL INFO:
- Adjustable color temperature (CCT) 2700K 3000K 3500K 4000K 5000K.Three lumen ranges 2500L/3000L/3500L
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- DIAMETER:
- 11.3
- HARMONIZED CODES:
- 9405.42.6000
- LUMENS:
- 2500L/3000L/3500L
- SHIP CARTON HEIGHT:
- 5.91''
- SHIP CARTON LENGTH:
- 11.81
- SHIP CARTON WIDTH:
- 11.81''
- WARRANTY:
- 5 Year Limited - LED Commercial Downlights
- BEAM SPREAD:
- 80
- CA PROP-65:
- Lead
- CARTON CUBIC FEET:
- 0.477
- CARTONS PER UNIT:
- 1
- CEC:
- T20 Exempt - Fixtures Not Regulated
- CEC TERSE:
- Lawful for sale in California
- CEILING APERTURE:
- 10.00 in. Cutout
- CRI:
- 80
- INCANDESCENT EQUIVALENT:
- 150W/200W/250W
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- PACK TYPE:
- Box
- REPLACEABLE LIGHT SOURCE:
- No
- SAFETY LISTING:
- CETLUS - LISTED
- HEIGHT:
- 5.63
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 11.30
- CEILING:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- BULB KELVIN:
- Warm to Cool White
- DIMMABLE:
- Yes-Dimmable
- More Info {1}:
- ENERGY STAR LISTED
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- AVAILABLE FOR PURCHASE:
- NO
- BULB SHAPE:
- INTEGRATED LED
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- ANSI BASE:
- X
- CCT SELECTABLE:
- YES
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- 0-10V
- ES UNIQUE ID:
- ESID-2353731
- FCC COMPLIANT:
- YES
- FEATURE 1:
- LAWFUL FOR SALE IN CALIFORNIA
- FEATURE 2:
- SELECTABLE WATTAGE LUMENS AND CCT
- FEATURE 3:
- REMOTE DRIVER AND J-BOX WITH KNOCKOUTS
- FEATURE 4:
- QUICK CONNECT FEATURE FOR EASY INSTALLATION
- FEATURE 5:
- ENERGY STAR LISTED
- FEATURE 6:
- FIVE YEAR LIMITED WARRANTY
- FEATURE 7:
- FIVE YEAR LIMITED WARRANTY
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- ROUND
- HAS DRIVER:
- YES
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- INSTALLATION NOTES:
- CAN BE INSTALLED WITH OR WITHOUT THE ROUGH-IN PLATE (80-959)
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- POLYCARBONATE (PC)
- MATERIAL:
- ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 60HZ
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- SDS/LED_LAMP.PDF
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- TRIM COLOR:
- WHITE
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 2.81
- LAMPS:
- YES
- LONG DESCRIPTION:
- SATCO'S S11813 WATTAGE SELECTABLE 10 INCH LED COMMERCIAL DOWNLIGHT IS THE PERFECT SOLUTION FOR OFFICES STORES HOSPITALS AND HOTELS. DIMMABLE AND CCT SELECTABLE THIS DIRECT WIRED DOWNLIGHT INSTALLS EASILY EVEN IN THE MOST CHALLENGING R...
- STYLE:
- UTILITY
- AMPS:
- 0.275-0.119/0.333-0.144/0.383-0.166A
- CAN SIZE:
- 10 IN.
- FLR EQUIV:
- 2 X 26W CFL
- More Info {2}:
- FIVE YEAR LIMITED WARRANTY
- More Info {3}:
- LAWFUL FOR SALE IN CALIFORNIA
- More Info {4}:
- QUICK CONNECT FEATURE FOR EASY INSTALLATION
- More Info {5}:
- REMOTE DRIVER AND J-BOX WITH KNOCKOUTS
- More Info {6}:
- SELECTABLE WATTAGE LUMENS AND CCT
- CEC WEB TEXT:
- LAWFUL FOR SALE
- AIR TIGHT:
- NO
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EFFICACY:
- 75.76/75.00/76.09 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- THIS A COMMERCIAL LED DOWNLIGHT WITH COLOR QUICK TECHNOLOGY: SELECT AMONG A RANGE OF WATTS LUMENS AND COLOR TEMPERATURES. AN OUTBOARD LED DRIVER/JUNCTION BOX ALLOWS FOR EASY PLACEMENT EVEN IN THE MOST CHALLENGING RENOVATIONS. THE DOWNLI...
- SHORT DESCRIPTION:
- 46WLED/CDL/10/ADJ-CCT/80D
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- POWER FACTOR:
- 0.98
