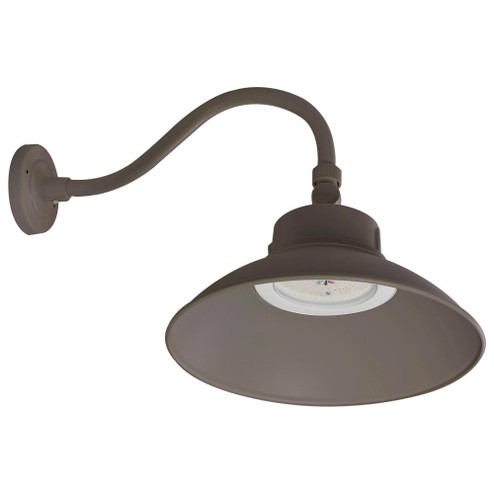

LED Gooseneck; 30W/40W/50W; CCT Selectable 3K/4K/5K; Bronze; 120-277V; With Photocell {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- AVAILABLE FOR PURCHASE:
- YES
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIAMETER:
- 14.17
- DIMMABLE:
- YES-DIMMABLE
- EXTENDS:
- 23.23
- HARMONIZED CODES:
- 9405.11.6010
- LUMENS:
- 3300L-5500L
- SHIP CARTON HEIGHT:
- 10.04''
- SHIP CARTON LENGTH:
- 20.28
- SHIP CARTON WIDTH:
- 16.14''
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- BEAM ANGLE:
- 100
- CARTON CUBIC FEET:
- 1.9018
- CARTONS PER UNIT:
- 1
- CRI:
- 80+
- IP RATING:
- IP65
- LOCATION RATING:
- WET
- OPERATING TEMP:
- -30C (-22F) TO +50C (+122F)
- PHOTOCELL:
- HAS PHOTOCELL
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 2KV
- QUANTITY AVAILABLE AT MANUFACTURER:
- 99
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 14.96
- WIDTH:
- 14.17
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- SHIP WEIGHT:
- 5.1
- ADDITIONAL INFO:
- UV POWDER COATED FINISH
- B_U_G_RATING:
- B2-U2-G0
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- DARK SKY RATED:
- YES
- DIMMING TYPE:
- 0-10V DIMMING
- DLC APPROVED:
- YES
- DLC CLASSIFICATION:
- STANDARD
- DLC ID:
- S-85IVYA
- DLC PRIMARY USE:
- OUTDOOR FULL-CUTOFF WALL-MOUNTED AREA LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- WATTAGE AND CCT SELECTABLE
- FEATURE 2:
- INTEGRATED BY-PASSABLE PHOTOCELL
- FEATURE 3:
- 0-10V DIMMABLE
- FEATURE 4:
- 2KV BUILT-IN SURGE PROTECTION
- FEATURE 5:
- 5 YEAR WARRANTY
- FEATURE 6:
- INCLUDES 16 IN. MOUNTING ARM 24 IN. ACCESSORY MOUNTING ARM AVAILABLE
- FEATURE 7:
- IP65 RATED
- FEATURE 8:
- RUGGED UV POWDER COATED FINISH
- FINISH FAMILY:
- BRONZE
- INCLUDES:
- INCLUDES 16'' MOUNTING ARM
- IOT ENABLED:
- NO
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- THE CLASSIC GOOSENECK FIXTURE IS ONE WE HAVE ALL SEEN OFTEN BUT NEVER WITH THE TECHNOLOGIES NOW AVAILABLE FROM SATCO
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING DIAMETER:
- 4.65
- MOUNTING PROCEDURE:
- WALL
- OPERATING FREQUENCY:
- 50/60HZ
- PACK TYPE:
- BOX
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- SPECIFICATION NOTES:
- FOR INTERNATIONAL DARK SKY COMPLIANCE THE FIXTURE CCT MUST BE SET TO 3000K AND INSTALLED IN A DOWNWARD FACING AND LOCKED POSITION.
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 4.4
- STYLE:
- TRADITIONAL
- AMPS:
- 0.250-0.108/0.333-0.144/0.417-0.181A
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- WARM TO COOL WHITE
- BEAM SPREAD:
- 100
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- INCANDESCENT EQUIVALENT:
- 250W/300W/400W
- OPERATING TEMPRATURE:
- -30C (-22F) TO +50C (+122F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - LISTED CULUS - CERTIFIED CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- IMAGE INFO:
- ''''
- STANDARD STYLE:
- TRADITIONAL
- More Info {1}:
- 0-10V DIMMABLE
- More Info {2}:
- 2KV BUILT-IN SURGE PROTECTION
- More Info {3}:
- 5 YEAR WARRANTY
- More Info {4}:
- INCLUDES 16 IN. MOUNTING ARM 24 IN. ACCESSORY MOUNTING ARM AVAILABLE
- More Info {5}:
- INTEGRATED BY-PASSABLE PHOTOCELL
- More Info {6}:
- IP65 RATED
- More Info {7}:
- WATTAGE AND CCT SELECTABLE
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- CONNECTION:
- HARDWIRE
- ANSI BASE:
- INTEGRATED
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 10.04''
- EACH LENGTH:
- 20.28
- EACH WIDTH:
- 16.14''
- TARIFF CODE:
- 9405.11.6010
- BAA COMPLIANT:
- NO
- EACH CUBE:
- 1.9018
- EACH QUANTITY:
- 1
- EFFICACY:
- 110.00/110.00/110.00 LPW
- JA8 COMPLIANT:
- NO
- MOUNTING EXTENDS:
- 2.13
- ROMANCE COPY:
- THE CLASSIC GOOSENECK FIXTURE IS ONE WE HAVE ALL SEEN OFTEN BUT NEVER WITH THE TECHNOLOGIES NOW AVAILABLE FROM SATCO
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 5.20%
- INDOOR OUTDOOR:
- OUTDOOR
- ORDER IN MULTIPLES OF:
- 1
