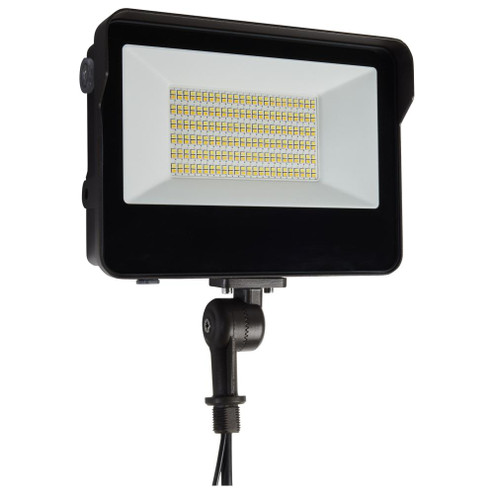

LED Tempered Glass Flood Light with Bypassable Photocell; CCT Selectable 3K/4K/5K; Wattage Adjustable 45W/60W/80W; ColorQuick and PowerQuick Technology; Bronze Finish {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- AVAILABLE FOR PURCHASE:
- YES
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB KELVIN:
- WARM TO COOL WHITE
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.42.6000
- LENGTH:
- 9.65
- LUMENS:
- 5400L-11200L
- SHIP CARTON HEIGHT:
- 12.9''
- SHIP CARTON LENGTH:
- 10
- SHIP CARTON WIDTH:
- 4.92''
- WARRANTY:
- 5-YEARS
- AMPS:
- 0.375-0.130/0.500-0.173/0.667-0.231A
- BEAM SPREAD:
- 150X140
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 0.3673
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- HAS DRIVER:
- YES
- HID EQUIV:
- 150W-250W
- IMPACT RATING (IK):
- IK08
- INDOOR OUTDOOR:
- OUTDOOR
- INSTALLATION NOTES:
- HEIGHT WILL CHANGE WITH DIFFERENT MOUNTING OPTIONS.''
- IOT ENABLED:
- NO
- IP RATING:
- IP66
- LENS MATERIAL:
- TEMPERED GLASS
- MATERIAL:
- DIE-CAST ALUMINUM
- OPERATING TEMPRATURE:
- -30C (-22F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- HAS PHOTOCELL
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CULUS - CERTIFIED
- SDS CLASS:
- LED_FIXTURE
- SDS SHEET LINK:
- #REF!
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 2.44
- QUANTITY AVAILABLE AT MANUFACTURER:
- 457
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.07
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 11.68
- FCC COMPLIANT:
- YES
- OPERATING FREQUENCY:
- 50/60HZ
- SPECIFICATION NOTES:
- NEMA DISTRIBUTION: 7V X 7H
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- ARCHITECTURAL FLOOD AND SPOT LUMINAIRES
- FEATURE 1:
- 3000K/4000K/5000K CCT SELECTABLE
- FEATURE 2:
- 45W/60W/80W WATTAGE SELECTABLE
- FEATURE 3:
- INTEGRATED BYPASSABLE PHOTOCELL AND 6KV SURGE PROTECTION
- FEATURE 4:
- TEMPERED GLASS
- FEATURE 5:
- 0-10V DIMMABLE
- FEATURE 6:
- IP66
- FEATURE 7:
- 50000 HOURS
- FEATURE 8:
- NEMA DISTRIBUTION: 7V X 7H
- FEATURE 9:
- SUGGESTED APPLICATIONS: COMMERCIAL/INDUSTRIAL GENERAL SITE LIGHTING LANDSCAPE SIGN ILLUMINATION PATHWAY/WALKWAY
- LONG DESCRIPTION:
- SATCO NUVO'S 65-542 LED TEMPERED GLASS FLOOD LIGHT IS BOTH 3K/4K/5K CCT SELECTABLE AND 45W/60W/80W WATTAGE SELECTABLE ALLOWING YOU TO VISUALIZE AND CUSTOMIZE ANY ENVIRONMENT. THE FIXTURE IS IP66 RATED TO WITHSTAND HARSH WEATHER CONDITIONS...
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- MAX HEIGHT:
- 11.69''
- IMAGE INFO:
- ''65-542.JPG:DEFAULT''
- INCANDESCENT EQUIVALENT:
- 300W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 12.9''
- EACH LENGTH:
- 10
- EACH WIDTH:
- 4.92''
- HEIGHT MAX:
- 11.69''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- BEAM ANGLE:
- 150X140
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.3673
- EACH QUANTITY:
- 1
- EFFICACY:
- 120.00/138.33/140.00 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- SATCO NUVO'S LED TEMPERED GLASS FLOOD LIGHTS ARE CCT AND WATTAGE SELECTABLE ALLOWING YOU TO VISUALIZE AND CUSTOMIZE ANY ENVIRONMENT. THESE FIXTURES ARE IP66 RATED TO WITHSTAND HARSH WEATHER CONDITIONS AND THE HIGHLY DURABLE TEMPERED GLASS...
- SHORT DESCRIPTION:
- LED WATT/CCT SELECTABLE FLOOD
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 20%
- B_U_G_RATING:
- B3-U2-G1
- ANSI BASE:
- INTEGRATED
- MOUNTING PROCEDURE:
- CEILING/WALL
- ORDER IN MULTIPLES OF:
- 1
- FINISH:
- UTILITY
- STANDARD STYLE:
- FLOOD LIGHTS
- CATEGORY:
- OUTDOOR
- SUB CATEGORY:
- FLOOD LIGHT
- COUNTRY OF ORIGIN:
- CHINA
- 5/2/2025 21:
- 28
- 5/5/2025 21:
- 26
- 5/6/2025 14:
- 18
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
